Use your
Rand McNally Truck OverDryve PRO, Tablet T70 or T80, TND720 or 730
trucking GPS or
Rand McNally RVND
7720, 7725, 7730, 7735-LM, or RV Tablet 7 GPS for RV'ers
as a camera monitor! (not for OverDryve 7 RV, or TND540
& 740, or RVND 7)
120 degree wide view fills the GPS screen with the one
tap on the navigation screen and one tap back.

Waterproof, color,
Sony
®
CCD lens, 520 TVL clear video image

Mount at the rear
of your truck or RV, or with the tow harness cable option, or
with the wireless modules to mount on the back of the trailer.

BULKHEAD-MOUNTED,
wired camera. Use two machine screws (included) or bolts
to secure the camera to the back.

Fantastic, crystal-clear,
color video (day) and good low-light capability (night.)

INCLUDES cigarette
lighter 12V power plug for camera power, and 2.5mm wire needed
to simply plug into the side of a Rand McNally model devices
listed.

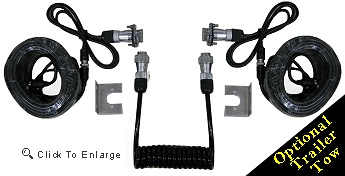

Optional trailer tow-harness allows you to
mount the camera on the back of a trailer. The standard trailer
tow disconnect cable allows for 35 feet on the truck side, 45
feet on the trailer side, and 6 feet of stretch cable connector
between the truck and trailer. (Other custom lengths are
available for the asking, just call)
OR, go wireless! Wireless option includes a long-range,
industrial grade transmitter for the trailer side and a receiver
for the pulling-rig cab near the GPS. Remember that "wireless"
does not mean "powerless." You will still need
to connect the camera transmitter on the trailer to 12 volts
and ground (like a marker light) to give it power. Click
the picture to the left for info.
TECH-TIP! Pre-measure your installation
path so that you get the correct wire length (if not using wireless
version.) Consider where you will be running (hiding) the wire
as this can add to the length requirement. You can also
always purchase extensions later from us to add into an existing
installation.
TECH-TIP! You will need to drill a 5/8"
hole, or use an existing opening to pass the camera cable through
the RV or trailer from where it mounts on the rear. Use
machine screws or bolts to secure the camera body to the rear
bulkhead. If using wireless option, the transmitter can
be inside or outside, but it still needs to be wired to 12-volt
power and ground!
Included hardware and specs: (all versions)
- Sony® CCD full color camera (520 TVL, Hi-Res)
- 12 Volt cigarette power plus camera hybrid camera cable
to connect to Rand video input
- 2 camera mounting
self-tapping machine screws
- Quick-start guide and
parts ID sheet
- 1 year direct replacement warranty
from DieselBoss
Additional with wired version:
- The connection wire to the camera that you choose at
checkout.
Additional with Tow-Cable disconnect
version:- Trailer side and truck side camera
cables
- 6 ft heavy-duty quick-disconnect coiled stretch
cable
- 2 screw-down brackets to secure the cables
to a bumper or trailer tongue
Additional with
Wireless version:- Wireless Transmitter and
wireless Receiver modules
